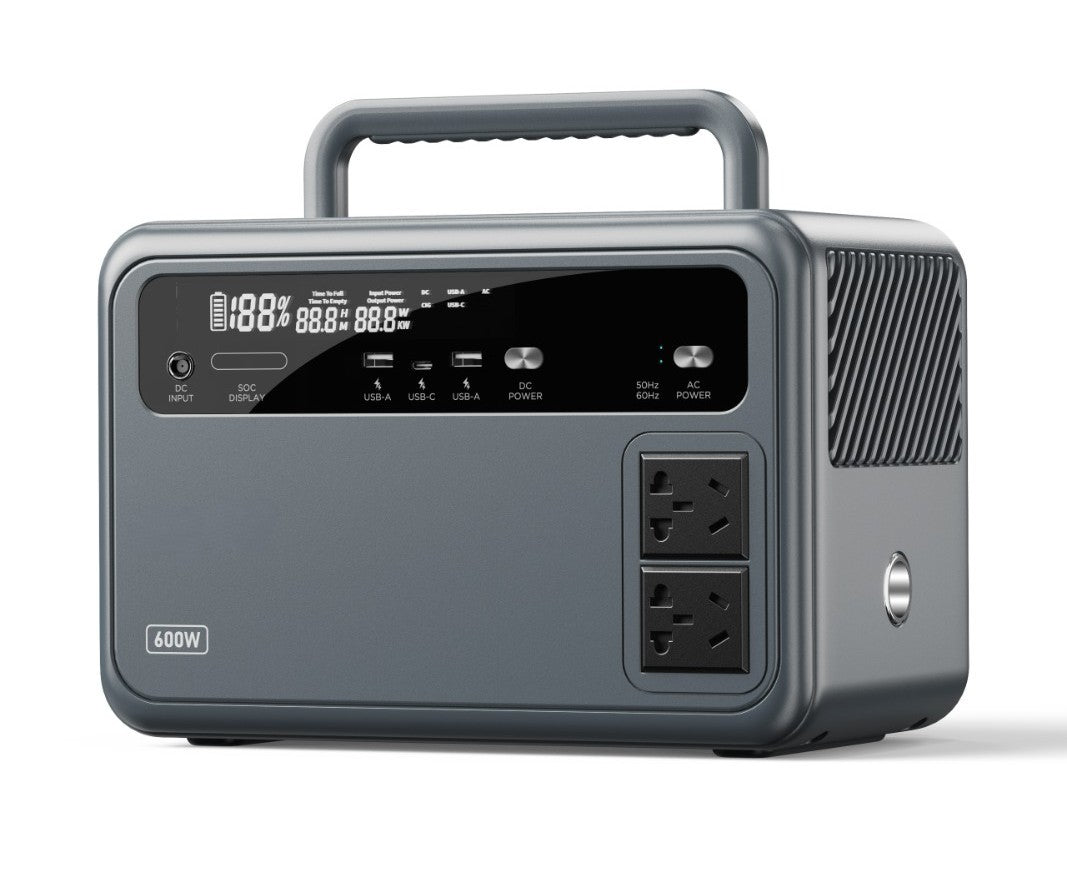

GT600 Battery Power Station - Extra Large 576Wh Capacity.

GT600 Power Station - Technical Specifications

The GT600B is a portable power station featuring a LiFePO4 battery with 576Wh capacity and 600W rated output power. Designed for outdoor activities and backup power applications, it provides multiple output interfaces including AC, USB, Type-C, and 12V car port.

Power Specifications

• Model: GT600B
• Rated Power: 600W
• Peak Power: 900W
• Energy Capacity: 576Wh (12.8V~45Ah)
• Battery Type: LiFePO4
• Battery Life Cycle: Over 3,500 cycles
• Inverter Type: Pure Sine Wave

Input Options

AC Adapter Charging

• Input: 15V-6A (90W Max)
• Automatic power-on when plugged in
• LED indicator shows charging progress

Solar Panel Charging

• Input: 12V-26V (Do not exceed 26V)
• 18V solar panel recommended for optimal efficiency
• PWM charge controller

Car Charger Charging

• Input: 12V-6A via 12V car cigarette lighter socket
• Maximum input current: 10A recommended
• Charge while car engine is running to avoid draining car battery

Output Interfaces

AC Output

• Pure sine wave output
• 220-240V 50Hz
• Rated power: 600W
• Peak power: 900W

USB-A Ports (QC3.0)

• 2 ports @ 5V/3A each
• Maximum: 15W per port

USB Type-C Port (PD)

• 1 port with Power Delivery
• Output: 5V/3A, 9V/3A, 12V/2.5A
• Maximum: 30W

12V Car Port

• 1 port @ 12V/10A
• Maximum: 120W

Additional Features

• Built-in LED flashlight
• Battery Management System (BMS) with multiple protections
• Digital display showing battery level and charging status
• Durable ABS+PC fireproof plastic shell
• Wear-resistant surface finish
• Integrated carrying handle

Safety Protection Systems

• Temperature control
• Surge protection
• Short circuit protection
• Overcharge protection
• Overload protection
• Overcurrent protection
• Overvoltage protection
• Overtemperature protection

Physical Specifications

• Dimensions: 298 × 174 × 197mm
• Net Weight: Approximately 6.7kg (14.8 lbs)

Operating Temperature Ranges

• Charging: 0°C to 40°C
• Discharging: -10°C to 40°C
• Storage: -10°C to 40°C

Certifications

FCC, CE, RoHS, PSE, MSDS, UN38.3

What's Included

• GT600B Power Station × 1
• AC Power Adapter × 1
• User Manual × 1

CPAP Runtime Estimates

Full-Size CPAP Machines - At 10 cmH2O Pressure Setting

• Without Humidifier: Approximately 4-5 nights (32-40 hours)
• With Humidifier: Approximately 2-3 nights (16-24 hours)

Full-Size CPAP Machines - At 15 cmH2O Pressure Setting

• Without Humidifier: Approximately 3-4 nights (24-32 hours)
• With Humidifier: Approximately 1.5-2 nights (12-16 hours)

Travel CPAP Machines (BMC M1 Mini, ResMed AirMini, etc.) - At 10 cmH2O

• Without Humidifier: Approximately 8-10 nights (64-80 hours)
• With HumidX/Waterless Humidification: Approximately 6-8 nights (48-64 hours)

Travel CPAP Machines (BMC M1 Mini, ResMed AirMini, etc.) - At 15 cmH2O

• Without Humidifier: Approximately 6-7 nights (48-56 hours)
• With HumidX/Waterless Humidification: Approximately 5-6 nights (40-48 hours)

Note: Runtime estimates based on typical CPAP power consumption ranges. Full-size CPAPs without humidifier: 10-15W at 10cmH2O, 15-20W at 15cmH2O. With humidifier: 25-35W at 10cmH2O, 35-45W at 15cmH2O. Travel CPAPs consume significantly less power: 6-8W at 10cmH2O, 8-10W at 15cmH2O. Actual runtime varies by CPAP model, humidifier settings, ambient temperature, and breathing patterns. Pure sine wave output ensures safe operation with all CPAP machines.

Ideal Use Cases

• CPAP therapy during camping or power outages
• Outdoor activities (camping, hiking, fishing, etc.)
• Emergency backup power for household appliances
• Off-grid power supply
• Mobile workstations and office equipment
• Outdoor events and photography
• Power tools and electric equipment
• Medical devices and sensitive electronics

Key Technical Advantages

LiFePO4 Battery Chemistry

• Extended cycle life (3,500+ cycles vs ~500 for standard lithium-ion)
• Enhanced safety and thermal stability
• Stable discharge characteristics
• Longer operational lifespan

Pure Sine Wave Inverter

• Compatible with sensitive electronics
• Reduced electrical noise
• Safe for medical devices and precision equipment

Versatile Charging Options

• AC adapter charging (90W max) for fast recharge
• Solar panel charging for off-grid sustainability
• Car charger option for on-the-go charging
• Flexible solar input range (12V-26V)

Multiple Output Modes

• AC, USB, and car output can charge multiple devices simultaneously
• 3 distinct output types for maximum versatility
• Efficient power management and fuel gauge display

---

Important Notes:

• Solar panels sold separately (18V panel recommended)
• Actual solar charging efficiency varies with weather conditions, ambient temperature, sunlight intensity, and panel angle
• When charging via car charger, ensure the car engine is running to avoid draining the car battery
• Car charger function only works with 12V output cigarette lighters
• Output performance may vary with load and environmental conditions
• Only use the designated power adapter; non-designated adapters may damage the unit
• Please read warranty policy and user manual carefully
