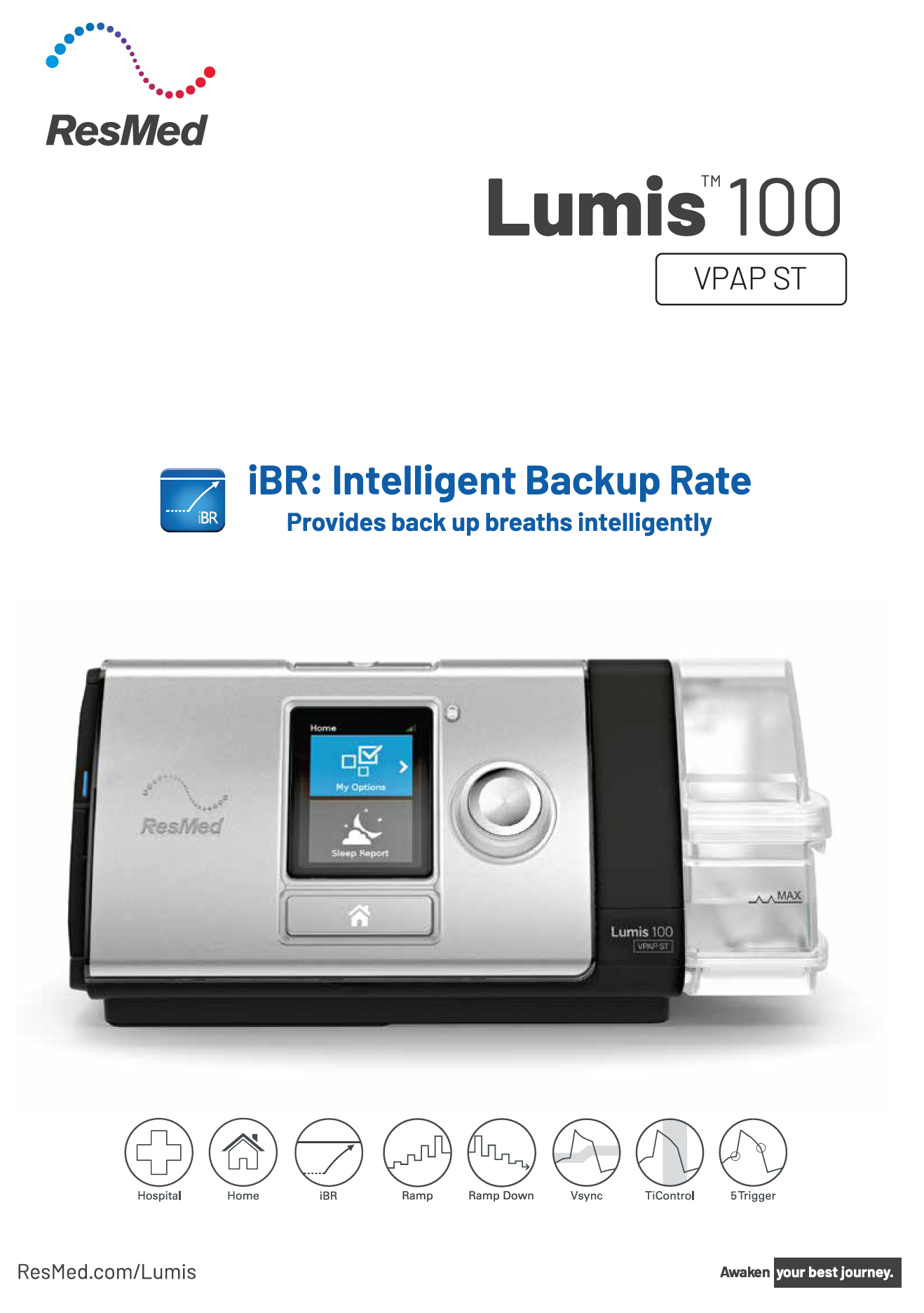

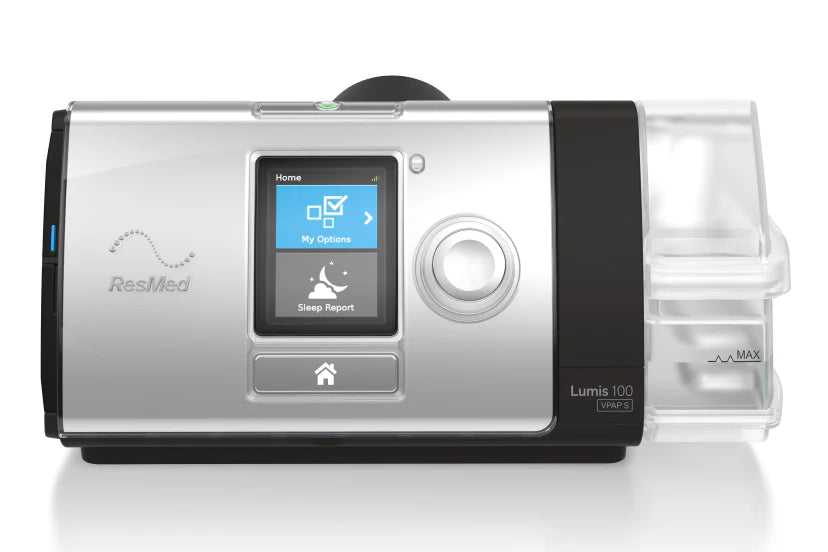

ResMed Lumis 100 ST BiPAP/VPAP

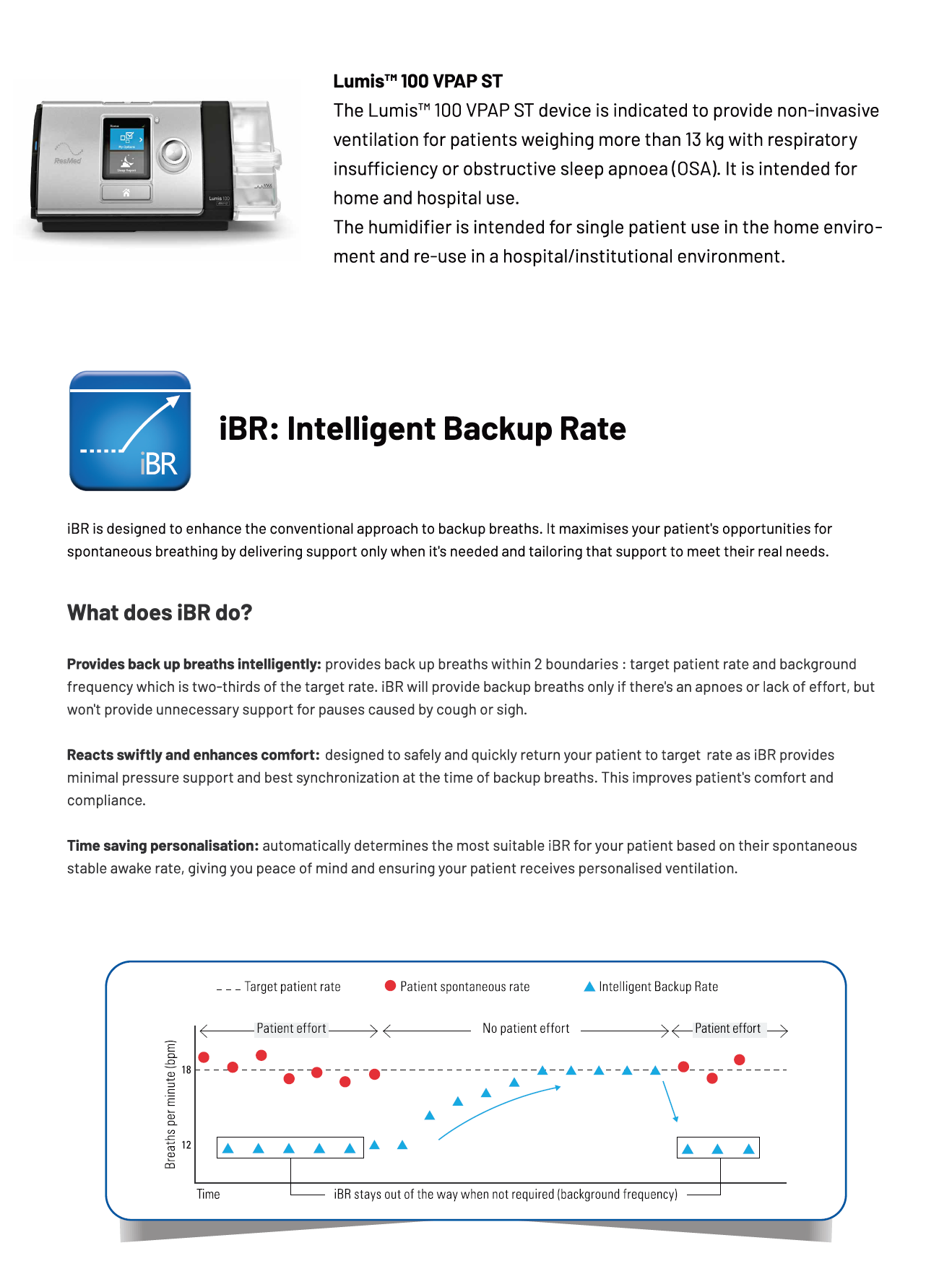

Overview The Lumis 100 ST is indicated to provide non-invasive ventilation for patients weighing more than 13 kg with respiratory insufficiency or obstructive sleep apnoea (OSA). It is intended for home and hospital use.

A specialist prescription is recommended to purchase a BiPAP machine. This is because a BiPAP titration study and sleep test results are required to configure the machine according to your condition and respiratory needs. If you do not have sleep test results but still wish to purchase a BiPAP machine, it will be sent to you in a factory state, and you will need to configure the device. We can only offer limited support with BiPAP configuration unless provided with polysomnographic sleep test data or previous BiPAP machine settings.

For use with:

  1. Chronic Obstructive Pulmonary Disease (COPD)
  2. Obstructive Sleep Apnea (OSA)
  3. Central Sleep Apnea (CSA)
  4. Complex Sleep Apnea Syndrome
  5. Obesity Hypoventilation Syndrome (OHS)
  6. Neuromuscular Disease
  7. Restrictive Thoracic Disorders

These conditions often involve compromised respiratory function, and the Lumis 100 ST provides necessary ventilatory assistance to ensure improved breathing and oxygenation at night.

Contraindications: The ResMed Lumis 100 ST should not be used by individuals with the following conditions unless directed by a physician:

  1. Severe Bullous Lung Disease
  2. Pneumothorax or Pneumomediastinum
  3. Pathologically Low Blood Pressure
  4. Dehydration
  5. Patients with unstable respiratory failure

Those with interface intolerance, upper airway obstruction, or any significant central neurological impairments should also consult their healthcare provider before using this device. For further reference, please consult the specific product documentation or a medical professional to ensure that it is the appropriate solution for your needs.

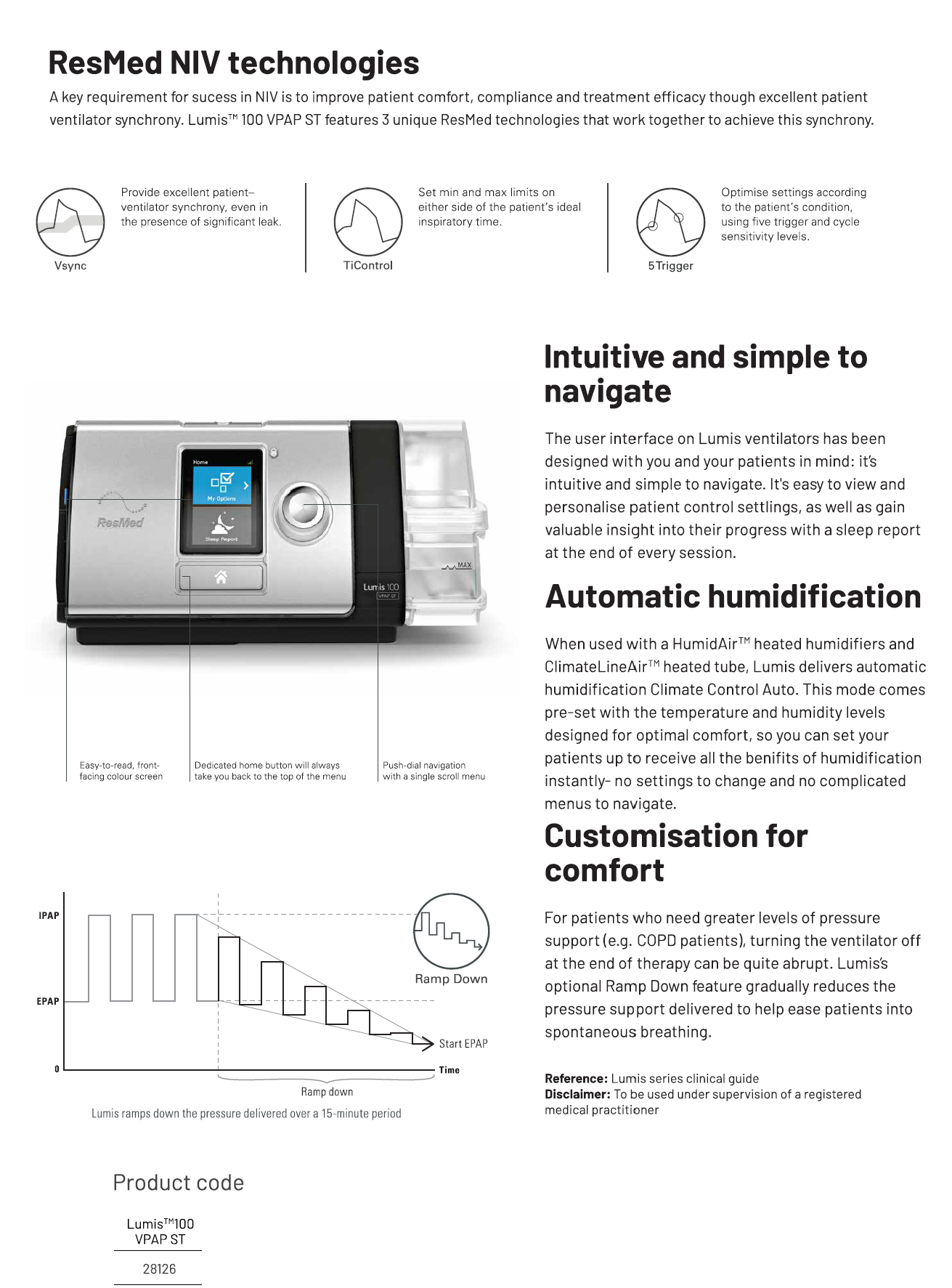

Features

  • Patient–Ventilator Compliance: Maintains high compliance even with significant leaks.
  • TiControl™: Allows setting inspiratory time limits to encourage spontaneous breathing.
  • Trigger and Cycle: Tailors settings with five sensitivity levels for optimal therapy.
  • QuickNav: Toggle between Settings and Monitoring screens with ease.
  • HumidAir™ Humidifier: Provides automatic humidification when combined.
  • Ramp and Ramp Down: Ensures comfort by easing patients into and out of therapy.
  • Continuous Leak Management: Ensures reliable pressure delivery and synchronization.
  • Oxygen Compatibility: Supports up to 15 L/min of supplemental oxygen in ST mode.
  • Ambient Light Sensor: Adjusts screen light to avoid disturbing bed partners.
  • 2 Years Warranty: Replace or repair in the event of manufacturing defect.

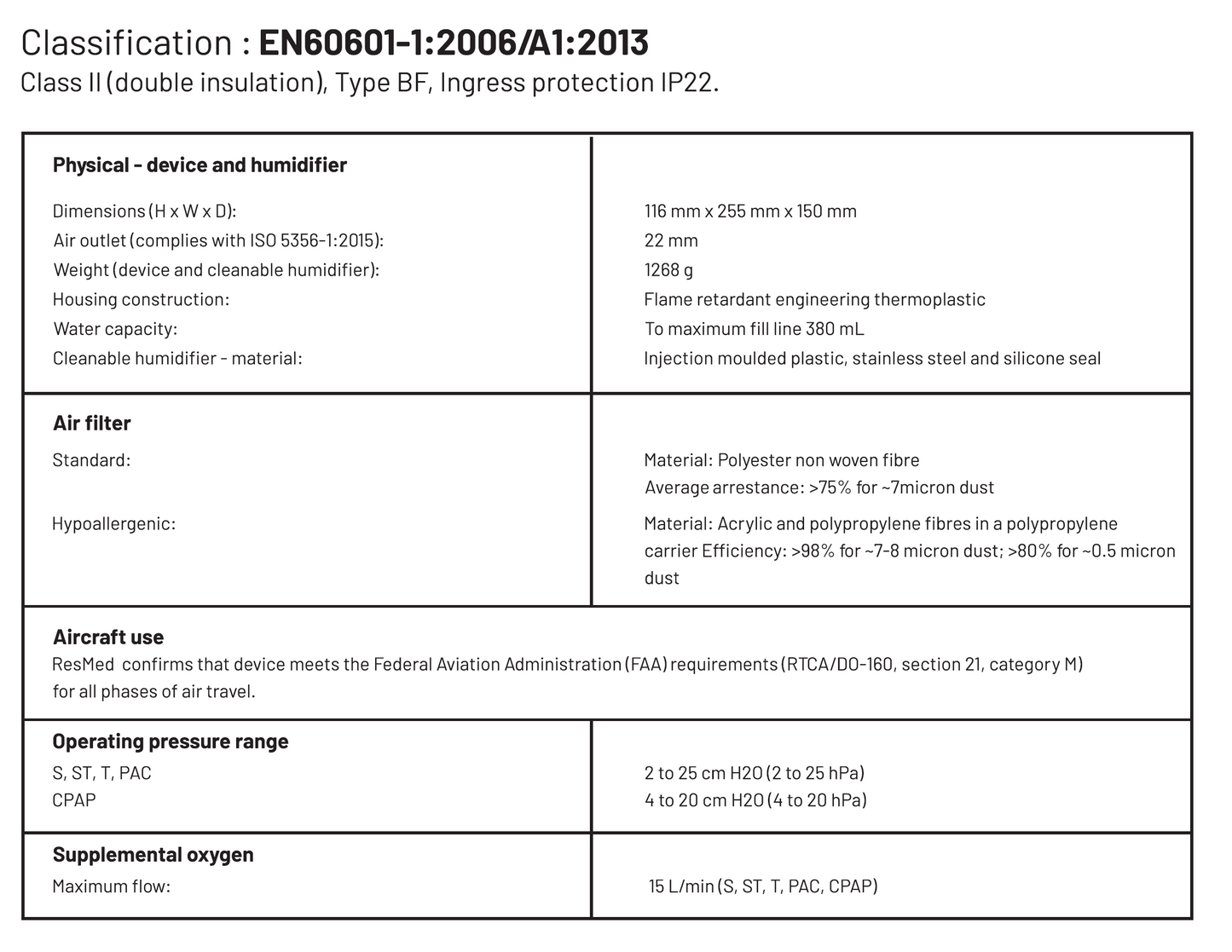

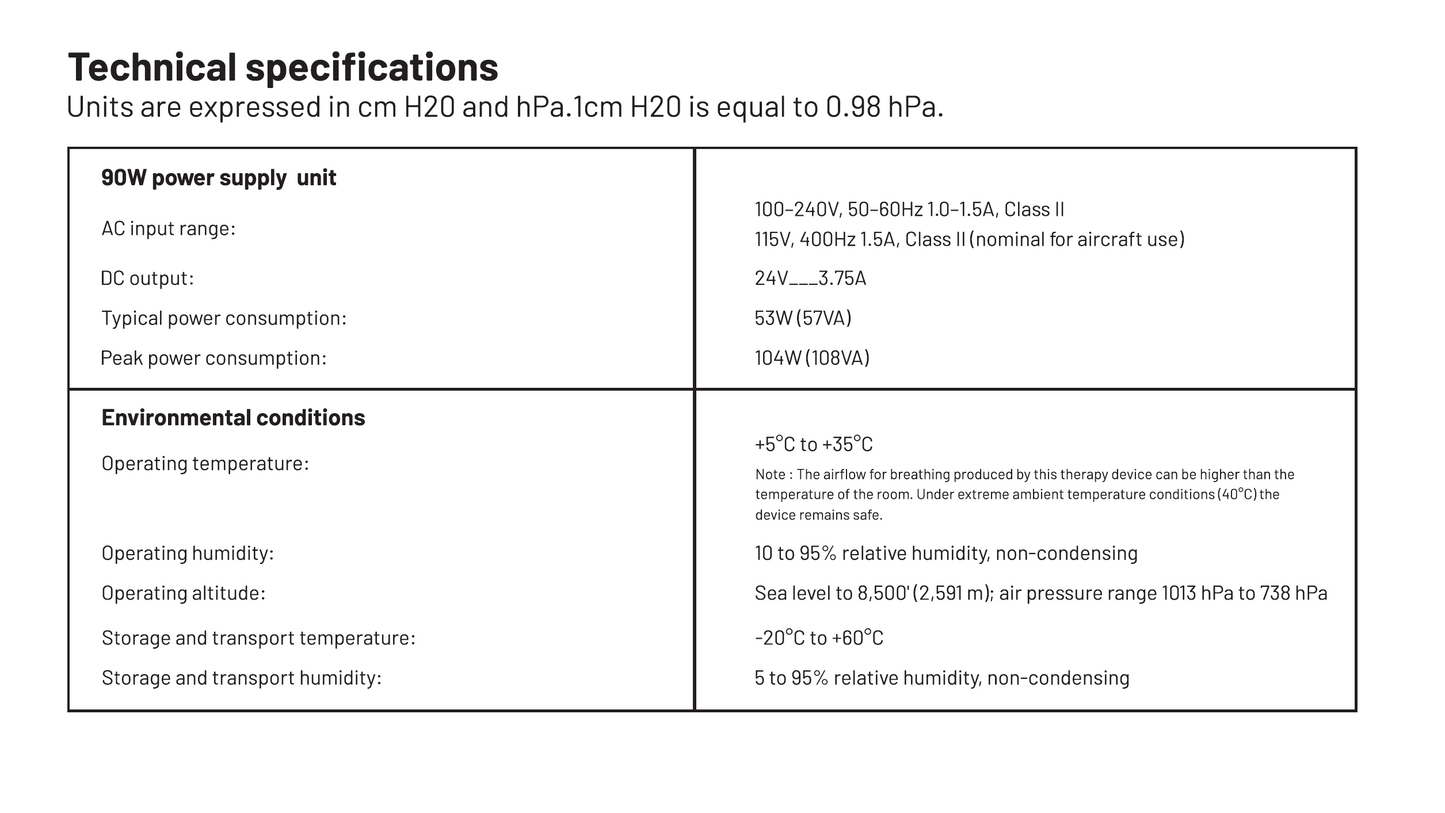

Specifications

  • Model: ResMed Lumis™ 100 VPAP ST BIPAP
  • Therapy Modes: BiPAP, S/T mode, CPAP, S, T
  • Pressure Range: IPAP: 4-25 cmH2O, EPAP: 4-20 cmH2O
  • Breath Rate: 4 - 40 breaths per minute
  • Inspiratory Time: 0.3 - 3.0 seconds
  • Expiratory Time: 0.3 - 3.0 seconds
  • Rise Time: 1 - 3 (in S mode)
  • Trigger Sensitivity: Adjustable
  • Pressure Relief: EPR 0 - 3 cmH2O
  • Data Management: SD Card
  • Display: LCD Screen
  • Humidifier: Integrated, Heated (optional)
  • Water Chamber Capacity: Varies by model
  • Connectivity: Cloud Wireless Connectivity
  • Power Supply: 100 - 240 VAC, 50/60 Hz
  • Compliance Data Storage: Up to 365 days
  • Noise Level: < 30 dB(A)
  • Warranty: Manufacturer's standard warranty

Package Includes

  • ResMed Lumis 100ST VPAP device
  • Charger
  • Humidifier
  • Climate Control Tubing
  • SD Card
  • Travel bag
  • Filter cover & pre-installed filter

What is the ResMed Lumis™ 100 VPAP ST BIPAP Tripack?

A BiPAP device for treating sleep apnea and related respiratory conditions, offering spontaneous/timed (S/T) mode therapy.

How does the device work?

Delivers two levels of air pressure: higher pressure during inhalation (IPAP) and lower pressure during exhalation (EPAP). Provides timed pressure support.

Benefits of using the device?

Offers personalized therapy with adjustable pressure settings, improving sleep quality and alleviating sleep apnea symptoms. Suitable for those needing breathing support.

Is the device suitable for travel?

Yes, it is compact and lightweight, with travel-friendly accessories available for convenience.
