Ventmed DF20A-HM Auto CPAP with Heated Tubing

Ventmed DF20A-HM Auto CPAP Machine

• Latest VentMed APAP Device
• Introductory price until 31/8/2024. RRP $1399
• Enjoy greater comfort and better sleep with the DF series PAP device.

Enjoy greater comfort and better sleep with the DF series PAP. The VentMed DF20A-HM is the latest model in the Generation 3 VentMed DF series. With robust build quality, quiet operation, and an intuitive interface, the DF20A-HM offers effective and gentle therapy for sleep apnea. Enhanced with Bluetooth connectivity and a climate-controlled heating hose, comfort and compliance have not been excluded.

Key Features:

• Compact and Quiet Design: Redesigned to be quieter and more compact compared to previous DS Series (G1) and VM Series (G2) CPAP.
• Intuitive Interface: Easy to navigate with a 3.5-inch colour display.
• Advanced Performance: Offers CPAP and AUTO modes with adjustable inspiratory and expiratory pressures from 4cmH2O to 20cmH2O.
• Wireless Connectivity: Integrated Bluetooth for connecting to a pulse oximeter.
• Climate-Controlled Heating Hose: Provides adjustable tubing temperatures from 10℃ to 30℃.
• Humidification System: Adjustable levels from 1 to 5, including a preheating function.
• Humidifier Chamber Volume: 200 ml
• Flight Mode: Disables mobile network transceiver during flight.
• Low Noise Level: Operates at noise levels below 29 dB under 10cmH2O pressure.

Specifications:

• Model: DF-20A-HM
• Work Modes: CPAP, AUTO
• Therapeutic Pressure: 4cmH2O-25cmH2O
• Ramp Time: 0-60 minutes
• Noise Level: <29dB under 10cmH2O pressure
• Data Storage: TF card
• Screen Size: 3.5 inch color display
• Tubing Heating Function: Yes
• Mobile Network: Yes
• Data Cloud Platform: Yes
• Alarm Functions: Mask fall-off alarm, asphyxia alarm, pressure abnormality, tubing abnormality
• Weight: 1.7 KG
• Dimensions: 266.8 x 172.5 x 118.5 mm
• Power Supply: 100-240V, 50/60Hz, 1.5A Max

The VentMed DF20A-HM Auto CPAP Machine is designed to provide a restful night's sleep with its advanced, user-friendly features and reliable performance.

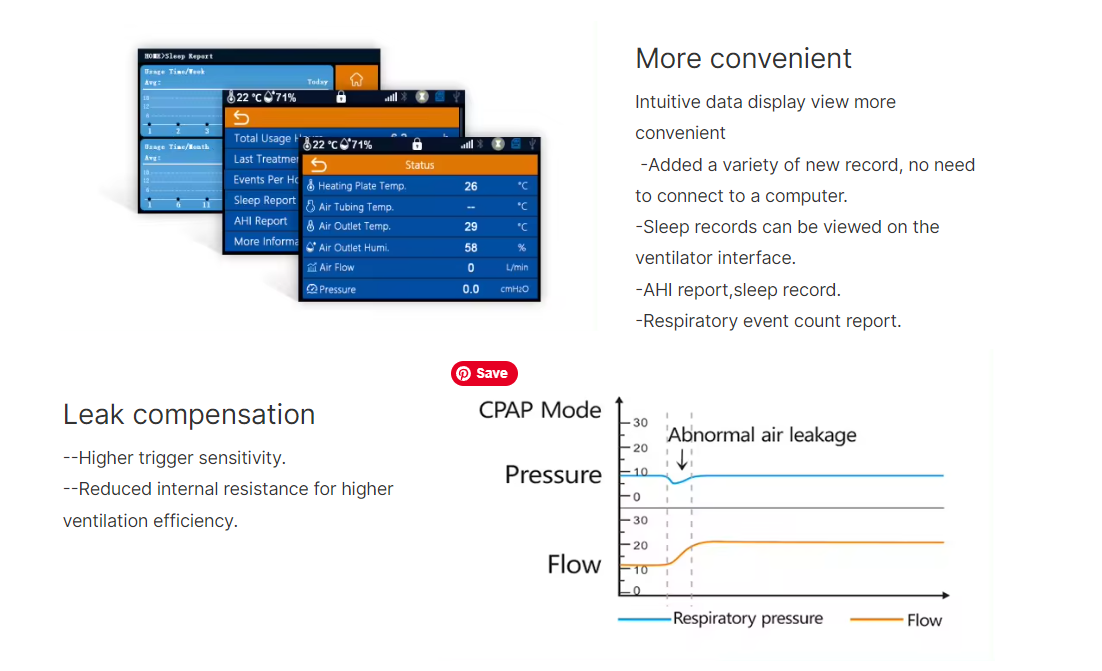

AST (Automatic Synchronization Technology) anticipates respiratory waveform and provides corresponding EPAP and IPAP to ensure the patient’s comfort and mechanical synchrony. Effective Treatment AST (Automatic Synchronization Technology) anticipates respiratory waveform and provides corresponding pressure to ensure patient's comfort and mechanical synchrony. Efficient heating humidifier system Integrated thermostatic humidifier, Anti-backflow design, avoid dry burning or water overflow. Professional sleep study report Unique sleep study report of whole week & month.
